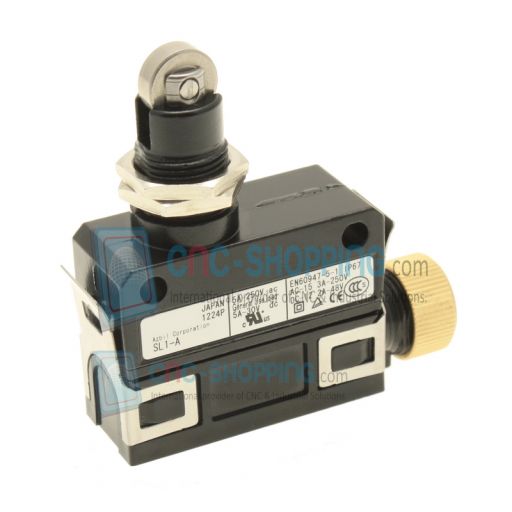

YAMATAKE Azbil SL1-A Compact Horizontal Super Limit Switch

YAMATAKE SL1-A High sensitivity Microswitch, Roller switch . (M.D.=0.1mm) and High sealability, Oil-resistant/immersion-proof type (JIS) and IP67 (IEC)

Discover the YAMATAKE AZBIL SL1-A Super Limit Switch, now available for purchase on our Cnc-shopping usa e-store with Permanent stock.

Designed, developed, and manufactured to cater to a wide range of general-purpose applications in machinery and equipment, the YAMATAKE SL1-A is the ideal solution for a multitude of critical applications. It is essential for:

Safety devices for plant worker protection,
Start/stop control devices for transportation and material handling machines,
Aeronautical/aerospace machinery,
Control devices for nuclear reactors.
To ensure maximum safety and reliability in these critical applications, it is recommended to adopt a fail-safe and redundant design concept, as well as a periodic maintenance program.

With its advanced technical characteristics and exceptional longevity, the YAMATAKE SL1-A Limit Switch represents a top choice for professionals seeking reliable and durable limit switches.

Also replaces :
Yamatake SL1-A-E Switch
Azbil SL1-A Switch
Honeywell SL1A Microswitch
Mori E66021A ACUATOR ROLLER PLUNGER



How to Replace and Install the Yamatake Azbil SL1-A Limit Switch ? Replacing or installing the YAMATAKE SL1-A Super Limit Switch is straightforward, ensuring minimal downtime and easy integration into your existing systems.

1. Preparation:

Ensure the power supply to the machine or system is turned off and securely isolated to prevent any accidental start-up. Gather necessary tools such as screwdrivers, wrenches, and possibly a multimeter for testing after installation.

2. Removal of the Old/faulty Yamatake Azbil SL1-A Limit Switch (if applicable):

Carefully disconnect any electrical connections to the old limit switch.
Unscrew or unfasten the mounting hardware securing the old switch in place.
Remove the old switch, taking note of its orientation and connection points for reference when installing the new switch.

3. Installation of the YAMATAKE Azbil SL1-A:

Position the YAMATAKE SL1-A (purchased from Cnc-shopping.us) in the desired location, ensuring it aligns correctly with the actuation points or cams on your machine.
Secure the switch in place using the provided mounting hardware. Ensure it is firmly attached but not overly tightened, which could affect its operation.
Connect the electrical wires to the new switch, referring to the wiring diagram provided with the product or your machine's service manual. Ensure all connections are secure and correctly matched.
Testing:

Once installed, carefully restore power to the machine or system.
Test the operation of the YAMATAKE SL1-A by manually activating it, if possible, and then by running the machine through its normal operation cycle. This will ensure the switch is correctly positioned and functioning as expected.

4. Final Checks:

After confirming the switch operates correctly, make any necessary adjustments to its position or sensitivity.
Double-check all fasteners and connections are secure.
With its advanced technical features and straightforward installation process, the YAMATAKE SL1-A Super Limit Switch is designed to enhance the efficiency and safety of your machinery with minimal effort.
