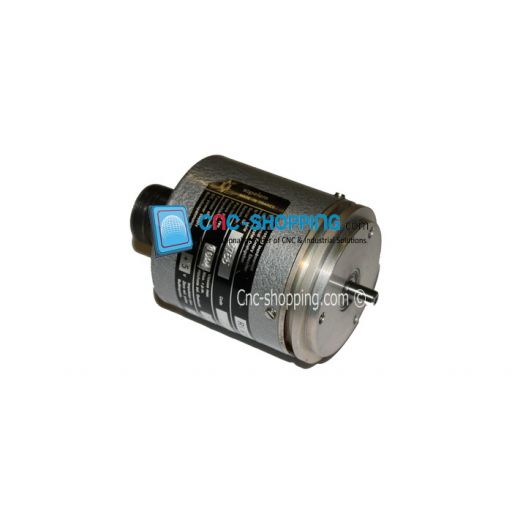

SOPELEM RI-620 1024 Incremental Rotary encoder Flange socket

SOPELEM RI-620 Incremental rotary Encoder, model 1024 pulses per rev. for a maximum speed of 5800 tr/min max. DC power supply is 5V. This Incremental rotary encoder is for sale online on CNC-Shopping.co.uk. SOPELEM RI-620 with Flange socket to connect your cable on it. Encoder SOPELEM RI-620 comes with a warranty.

A metal disc containing a set of concentric rings of openings is fixed to an insulating disc, which is rigidly fixed to the shaft. A row of sliding contacts is fixed to a stationary object so that each contact wipes against the metal disc at a different distance from the shaft. As the disc rotates with the shaft, some of the contacts touch metal, while others fall in the gaps where the metal has been cut out. The metal sheet is connected to a source of electric current, and each contact is connected to a separate electrical sensor. The metal pattern is designed so that each possible position of the axle creates a unique binary code in which some of the contacts are connected to the current source (i.e. switched on) and others are not (i.e. switched off). SOPELEM RI-620 Incremental rotary Encoder 1024 Pulses/rev (flange socket)
