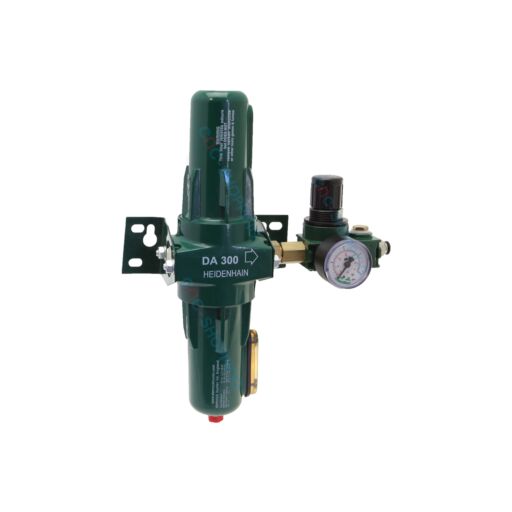

HEIDENHAIN DA 300 Compressed Air Unit

Order online your HEIDENHAIN compressed air filtering system, reference HEIDENHAIN DA 300 Compressed Air Unit (DA300 348249-35 34824935 Druckluftanlage) directly online from Cnc-shopping. This is an HEIDENHAIN DA300 compressed air filtration system also referenced under its manufacturer's identification number HEIDENHAIN Id.Nr. 348249-35 for HEIDENHAIN linear measurement systems type measuring scale. HEIDENHAIN DA300 enables the cleaning of HEIDEHAIN linear measurement scales by injecting compressed air directly into the HEIDENHAIN DA300 348249-35 measuring system, the filtration system generating the required pressurization. This pressurization is then used to expel any bulky parasites such as wood chips, dust or any other small items that can clog the reading head when run across the glass bar or steel tape.

25 m pressure tubing

3 T-joints

4 connecting pieces for linear encoders

HEIDENHAIN offers the DA 300 Compressed Air Unit for purifying and conditioning compressed air. It consists of two fi lter stages (fi ne fi lter and activated carbon fi lter), automatic condensation trap, and a pressure regulator with pressure gauge. The compressed air introduced into the DA 300 must fulfi ll the requirements of the following quality classes as per ISO 8573-1 (Edition 1995): Max. particle size and density of solid contaminants: Class 4 (max. particle size 15 µm, max. particle density 8 mg/m3 ) Total oil content: Class 4 (oil content: 5 mg/m3 ) Max. pressure dew point: Not defi ned, Class 7. It can serve for up to 10 encoders At an operating pressure of 7 · 105 Pa, the compressed air conducted to the encoder by far exceeds the required purity. Its pressure gauge and automatic pressure switch (available as accessories) effectively monitor the DA 300. The required air fl ow is 7 to 10 l/min per linear encoder; permissible pressure is in the range of 0.6 to 105 to 1 · 105 Pa. The compressed air must fl ow through connecting pieces with integrated throttle.

The HEIDENHAIN DA300 is ready to replace your defective or failed DA300 ID 348249-35 compressed air filtering system. This HEIDENHAIN DA300 compressed air filtration system is sold refurbished, tested and covered by a functional warranty.
