ALSTHOM PARVEX FDE T4C2B1 R0502 Motor Coder Tacho

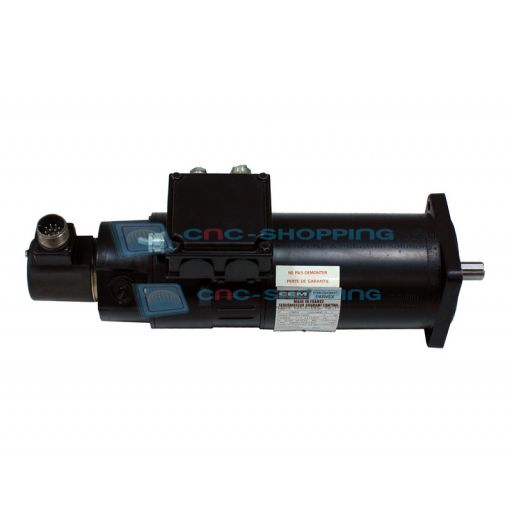

This ALSTHOM PARVEX DC motor FDE T4C2B1 R0502 (FDE-T4C2B1-R0502 FDE T4C2B1 RO5O2 CEM G70SSLDBI SERVOTECHNIK)), manufactured in France by CEM and belonging to the F range of insulation classification, is available for purchase directly through the Cnc-shopping webstore. This ALSTHOM PARVEX motor FDE T4C2B1 R0502 involves a nominal maximum rotation speed of 2050 rpm without brake, and the tacho-generator of this ALSTHOM PARVEX permanent magnet motor delivers a voltage of 20V at 1000rpm. Equipped with a straight shaft with key 19mm diameter on its centering diameter of 110mm and a SERVOTECHNIK coder G70SSLDBI 1250 pulses, this ALSTHOM PARVEX motor FDE T4C2B1 R0502 is connected through the junction box (power, tacho) mounted in front and the SERVOTECHNIK coder feedback socket. This ALSTHOM PARVEX motor FDE T4C2B1 R0502 is ready to order in our webstore for replace your old or defective ALSTHOM PARVEX motor FDE T4C2B1 R0502 of your CNC machine-tools.

The protection index number of this ALSTHOM PARVEX motor FDE T4C2B1 R0502 is IP55, which means that this motor is protected against dust and protected against water jets from every direction (22.5mm nozzle, 12.5L/mn).

All of our ALSTHOM PARVEX motors are fully refurbished and tested on functional benches with servo drives in accordance with manufacturing procedures. This ALSTHOM PARVEX motor FDE T4C2B1 R0502 comes with a functional warranty.
