A60L-0001-0290#LM32 Fuse Daito LM32 Fanuc Alpha drive (5 pcs)

DAITO Fuse LM32 reference FANUC A60L-0001-0290#LM32 (Fanuc A60L-0001-0290/LM32) for sale online on CNC-Shopping Intl. website by set of 5 pieces. Fuse protecting 3.2A (3.2 amperes). DAITO LM32 fuse for FANUC Alpha Servo amplifier and last FANUC Alpha i Servo amplifier. Sometimes this DAITO LM32 is installed on FANUC PCBs such as mainboards or Fanuc I/O modules or various Fanuc boards. All of our FANUC Fuses A60L-0001-0290#LM32 are brand new.

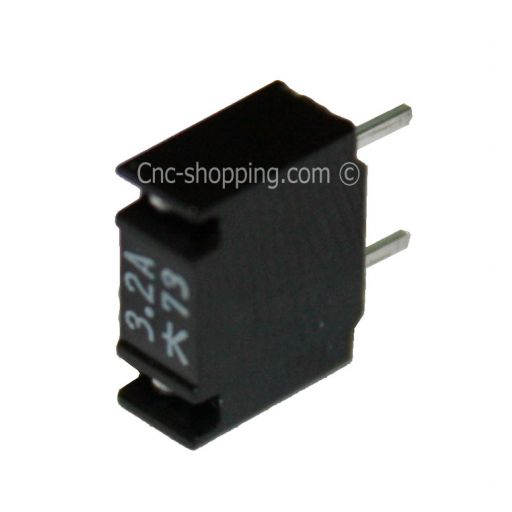

Price is for a set of 5 fuses (5 pcs). Physical size of a DAITO LM32 Fuse is 10x4x8mm.

A FANUC fuse consists of a metal strip or wire fuse element, of small cross-section compared to the circuit conductors, mounted between a pair of electrical terminals, and (usually) enclosed by a non-conducting and non-combustible housing. The fuse is arranged in series  to carry all the current passing through the protected circuit. The resistance of the element generates heat due to the current flow. The size and construction of the element is (empirically) determined so that the heat produced for a normal current does not cause the element to attain a high temperature. If too high a current flows, the element rises to a higher temperature and either directly melts, or else melts a soldered joint within the fuse, opening the circuit. FANUC A60L-0001-0290#LM32 DAITO LM32
