A06B-6124-H202 Fanuc Alpha iSV2 10/10HV

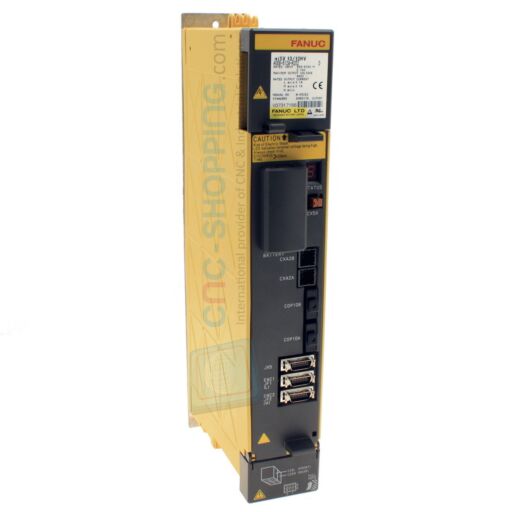

Order online your Fanuc Amplifier module reference Fanuc A06B-6124-H202 for sale online. This is a Fanuc amplifier type Fanuc Alpha iSV2- 10/10HV (αiSV 2-10/10HV) from the 400 Volts series for European CNC Machine-Tools. This Fanuc 2 axis drive Alpha 10/10HVi comes complete, equiped with the power board Fanuc A16B-2203-0815 and the control board Fanuc A20B-2101-0041. This Fanuc Alpha i HV amplifier twin axis reference Fanuc A06B-6124-H202 is tested and comes with a full warranty.

When replacing the Fanuc battery Panasonic BR-2-3 AGCT4A of your Fanuc A06B-6124-H202 HV amplifier, be careful not to touch bare metal parts in the panel. In particular, be careful not to touch any high-voltage circuits due to the electric shock hazard. Before replacing the battery, check that the DC link charge confirmation LED on the front of the servo amplifier is off. Install the battery with correct polarity. If the battery is installed with incorrect polarity, it may overheat, blow out. Avoid a short-circuit between the +6 V and 0 V lines of a battery or cable.

Generally, Fanuc fan motors are periodic-replacement parts. However, you should inspect the fan motor constantly and replace it in a preventive manner.
